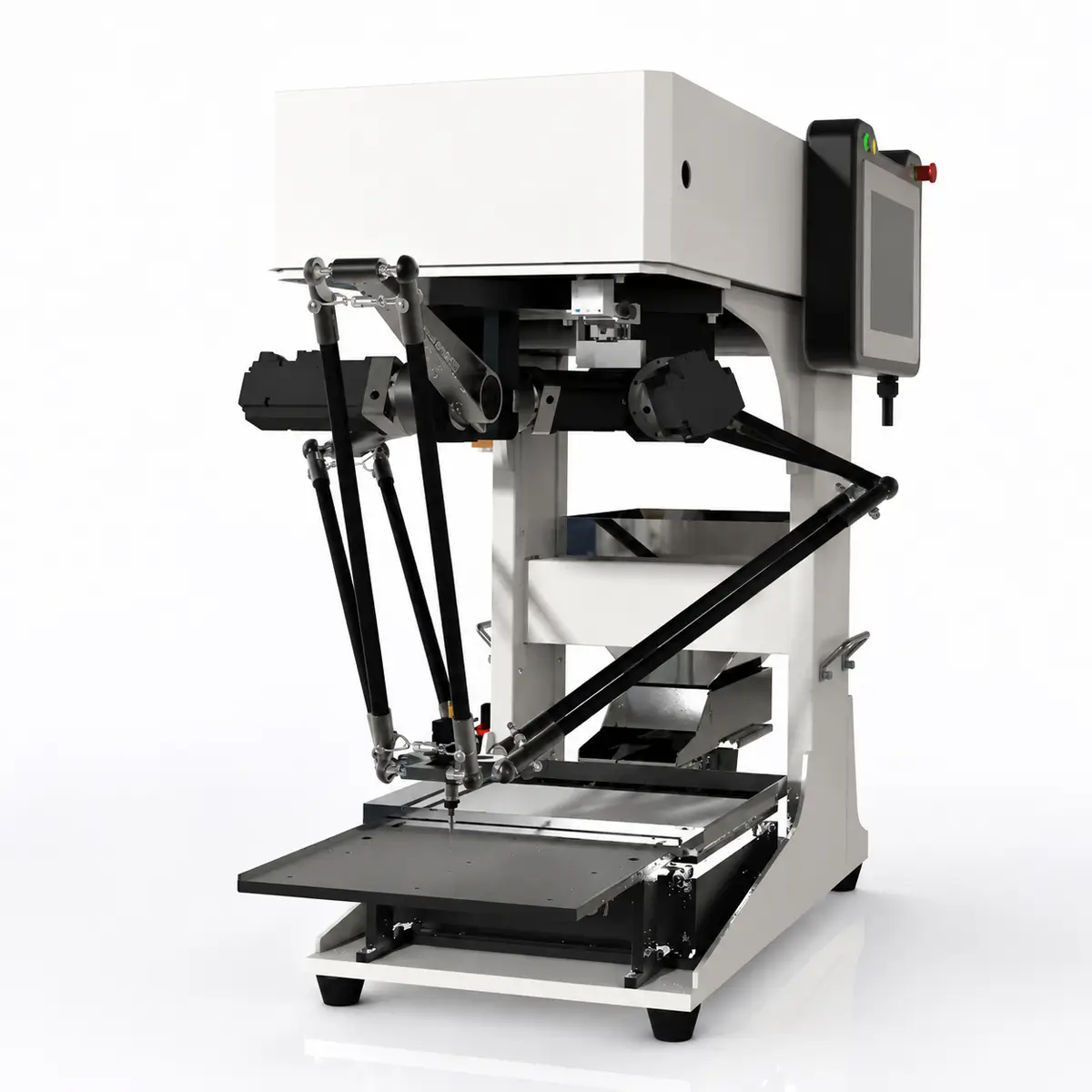

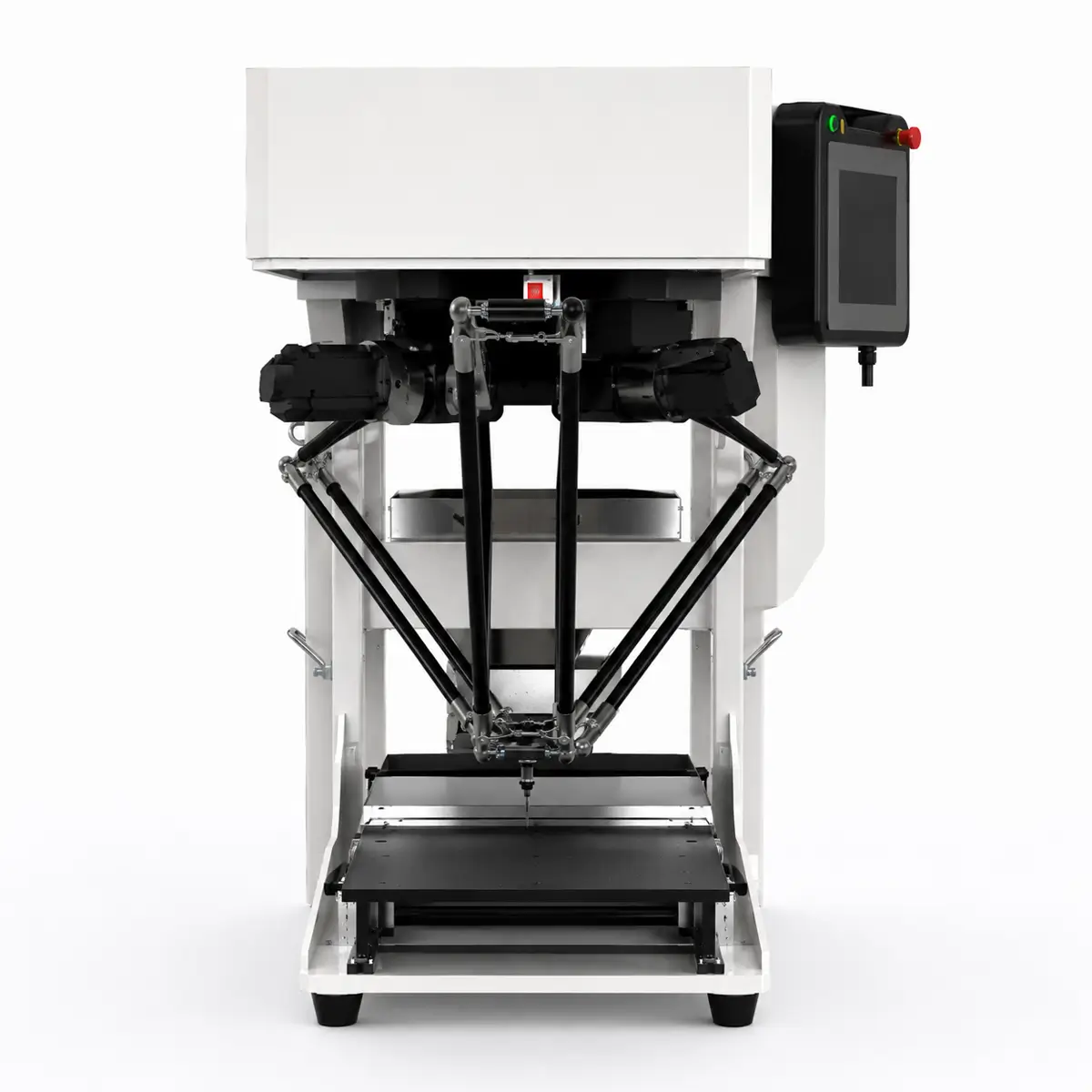

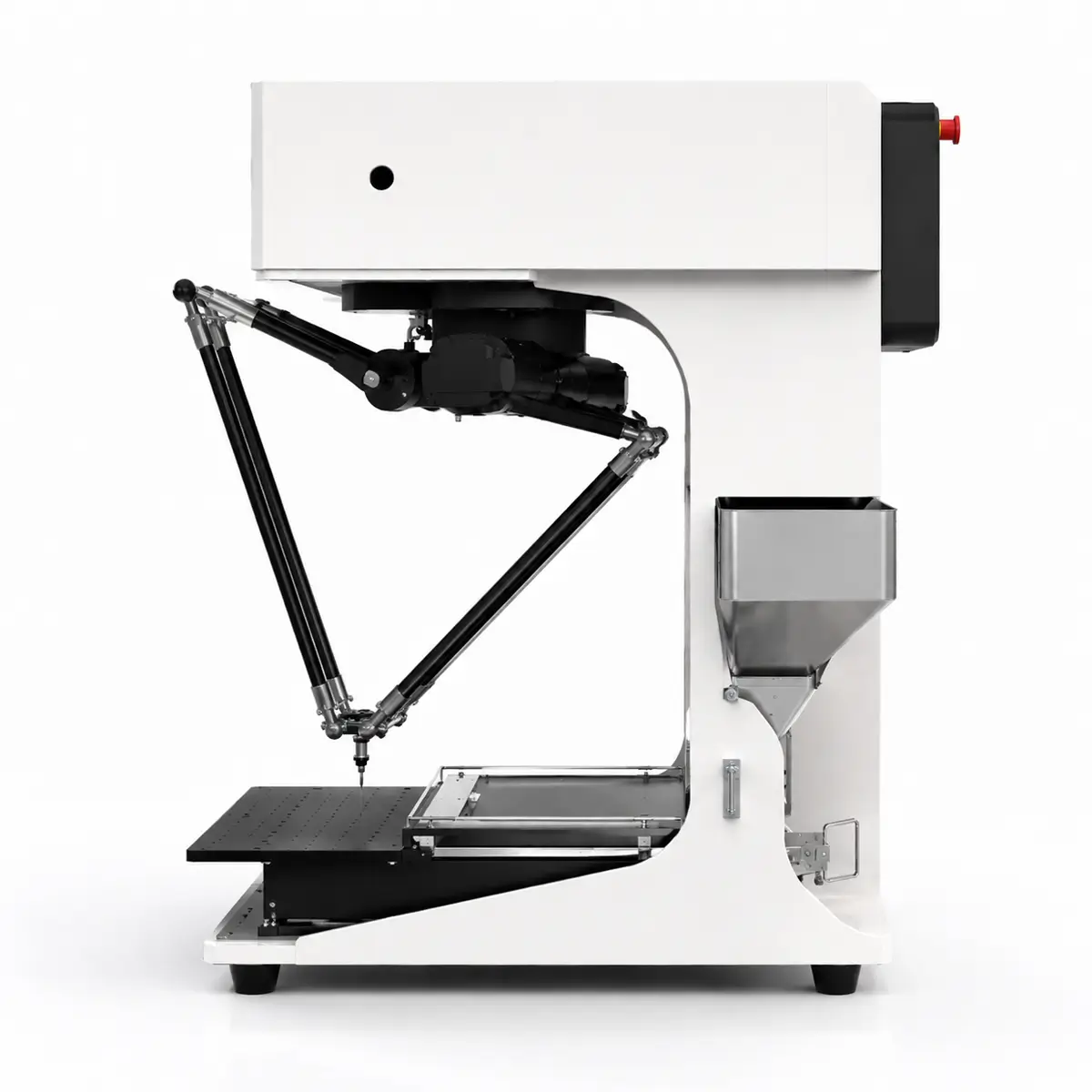

Delta Robot SWMY-HRD6T-SS-M

This compact Delta Robot system is designed for high-speed pick-and-place and automatic feeding applications. Featuring ±0.05mm repeatability, a Hikvision vision system, and touch teaching control, it delivers stable and accurate performance for flexible automated production lines.

Delta Robot SWMY-HRD6T-SS-M Parameter

Model: SWMY-HRD6T-SS-M
NO.	Parameter items	Technical Indicators
1	Effective loading and plating range	300*200mm
2	Adapt to product specifications and sizes	Flat length and width within5-50mm
3	Repeatability of loading and plating	±0.05mm
4	Peak maximum pick-and-place speed	6000 times/hour
5	Gripping method	The suction clamp brace can be switched freely
6	Number of vibrating plate specifications	360285mm1
7	Control system	SWOER Malaysia touch teaching system
8	Touch teach-in mode	Handheld movement
9	The number of product recipes can be stored	boundless
10	Number of camera brands	Hikvision 1200W*1
11	Rated voltage	AC220V
12	Rated power	1.5KW
13	Positive air pressure rating	0.2-0.5MP
14	Rated negative pressure	Unlimited
15	Net weight of the device	Approximately 100kg
16	Device dimensions	650950920mm
