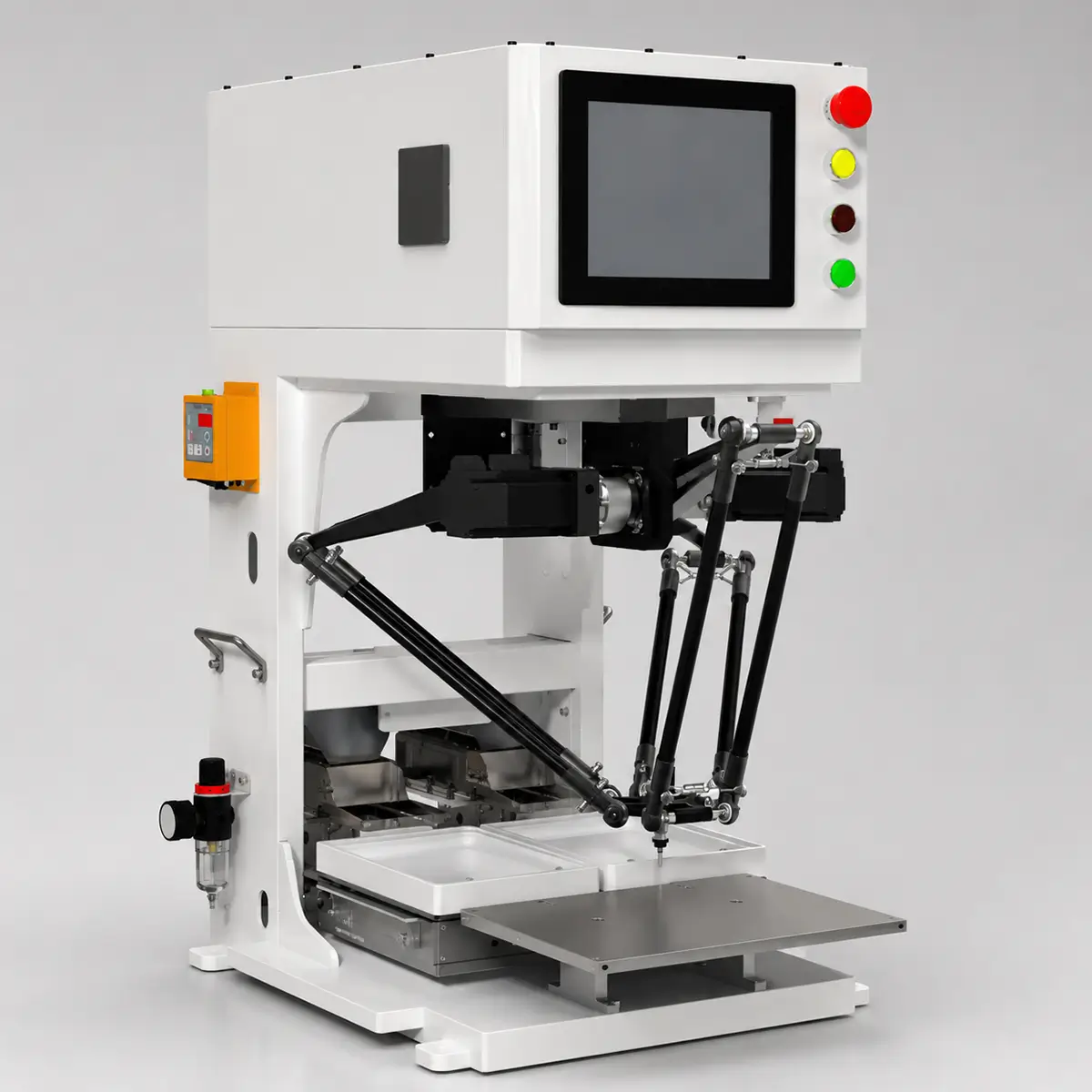

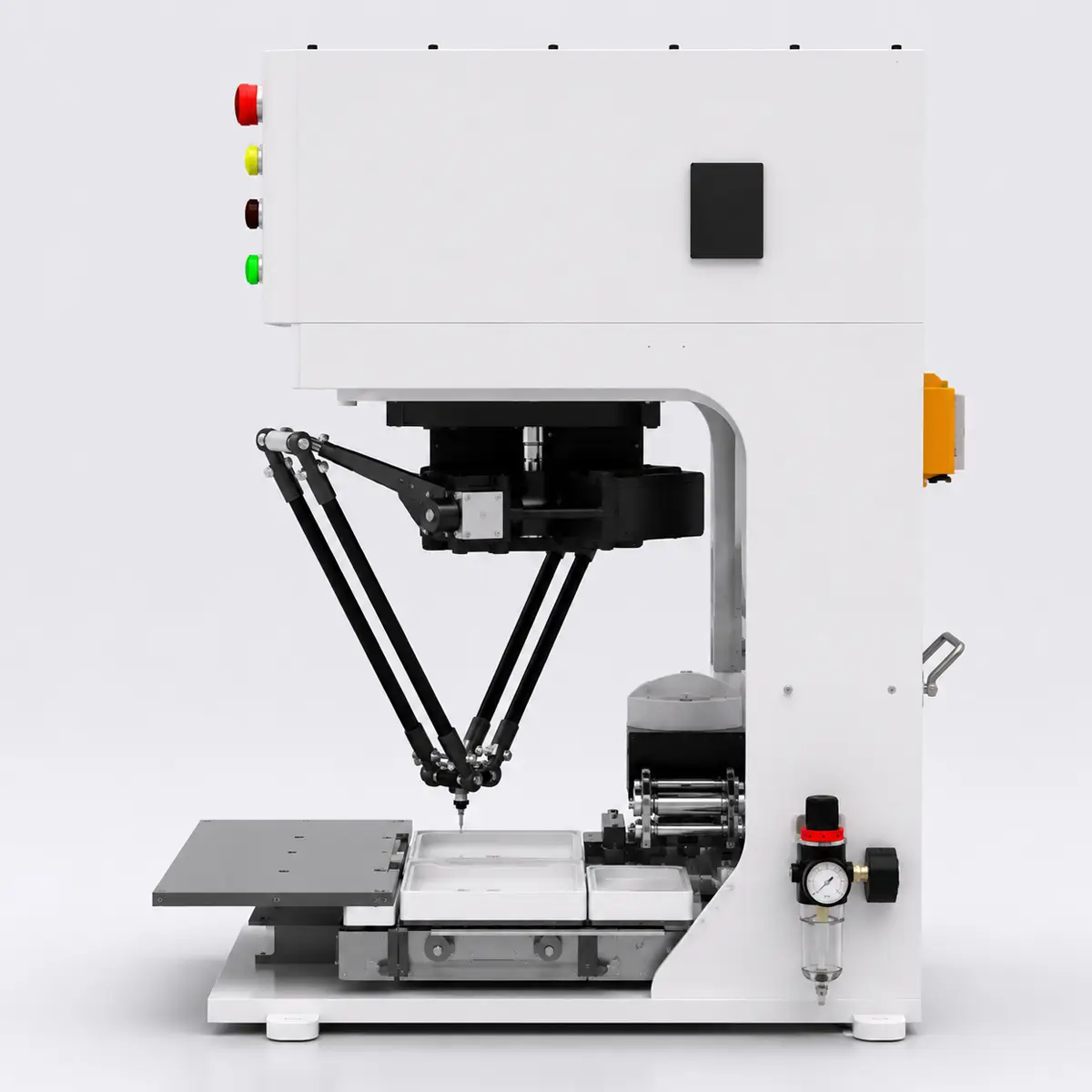

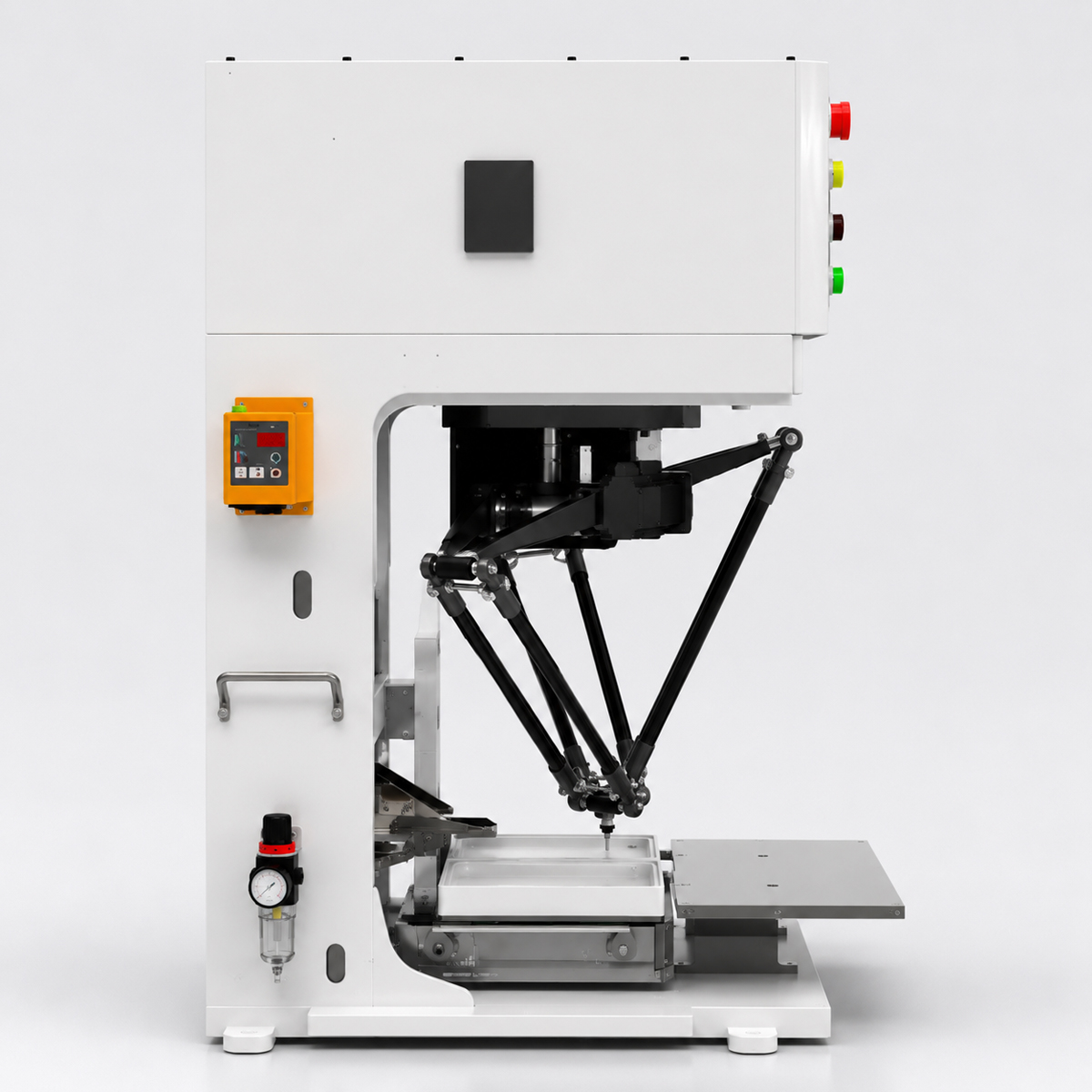

Delta Robot SWMY-HRD5T-DS-F

The SWMY-HRD5T-DS-F Delta Robot is designed for high-speed and precise pick and place automation. It supports flat products from 2-25mm and achieves up to 6000 times/hour with ±0.05mm repeatability. Equipped with a Hikvision vision system, touch teaching control, and flexible suction clamp switching, this Delta Robot improves production efficiency and stable automated loading performance for industrial applications.

Delta Robot SWMY-HRD5T-DS-F02 Parameter

Model: SWMY-HRD5T-DS-F
NO.	Parameter items	Technical Indicators
1	Effective loading and plating range	300*200mm
2	Adapt to product specifications and sizes	Flat length and width within 2-25mm
3	Repeatability of loading and plating	±0.05mm
4	Peak maximum pick-and-place speed	6000 times/hour
5	Gripping method	The suction clamp brace can be switched freely
6	Number of vibrating plate specifications	210170mm2
7	Control system	SWOER Malaysia touch teaching system
8	Touch teach-in mode	Handheld movement
9	The number of product recipes can be stored	boundless
10	Number of camera brands	Hikvision 1200W*1
11	Rated voltage	AC220V
12	Rated power	1.5KW
13	Positive air pressure rating	0.2-0.5MP
14	Rated negative pressure	Unlimited
15	Net weight of the device	Approximately 75kg
16	Device dimensions	550770950mm
