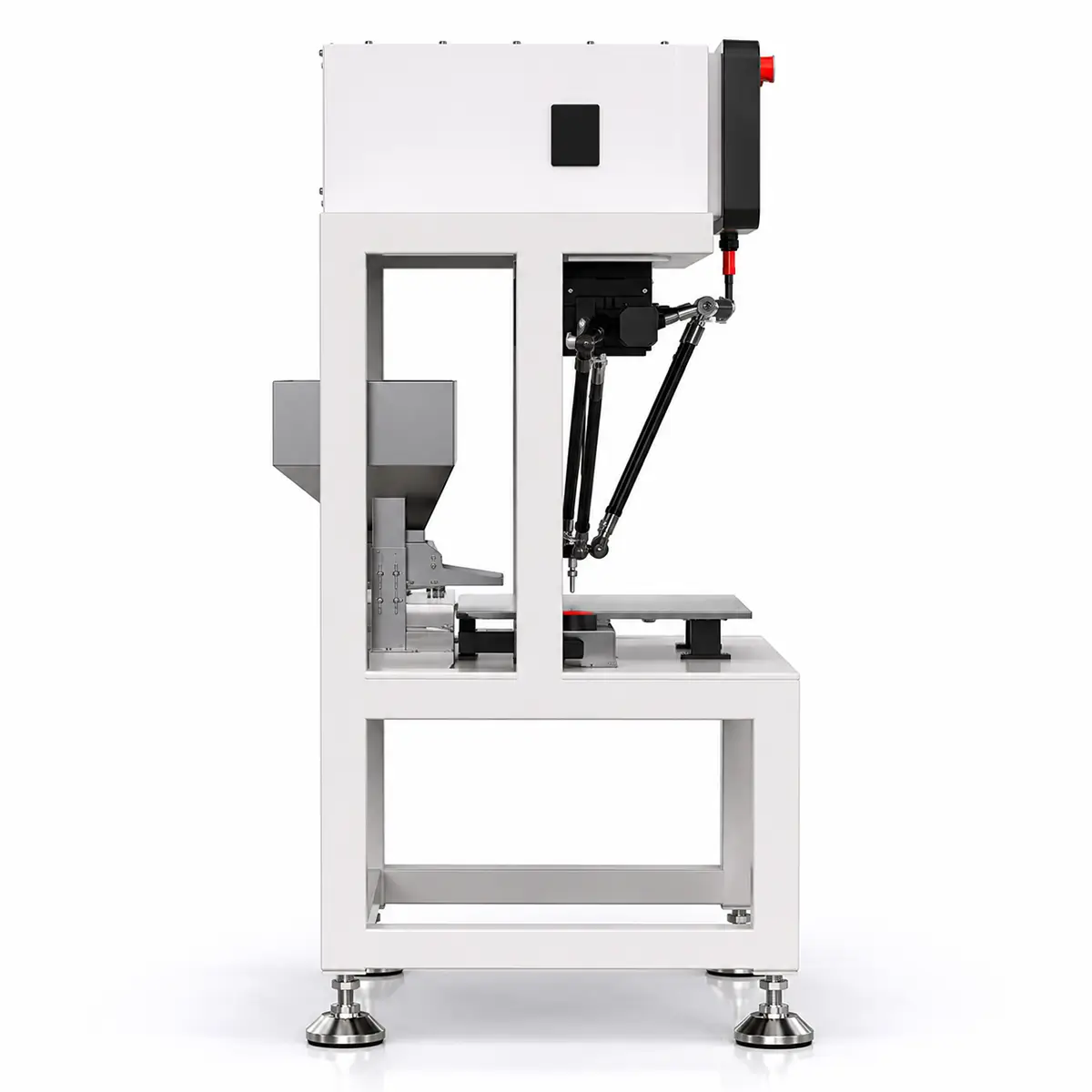

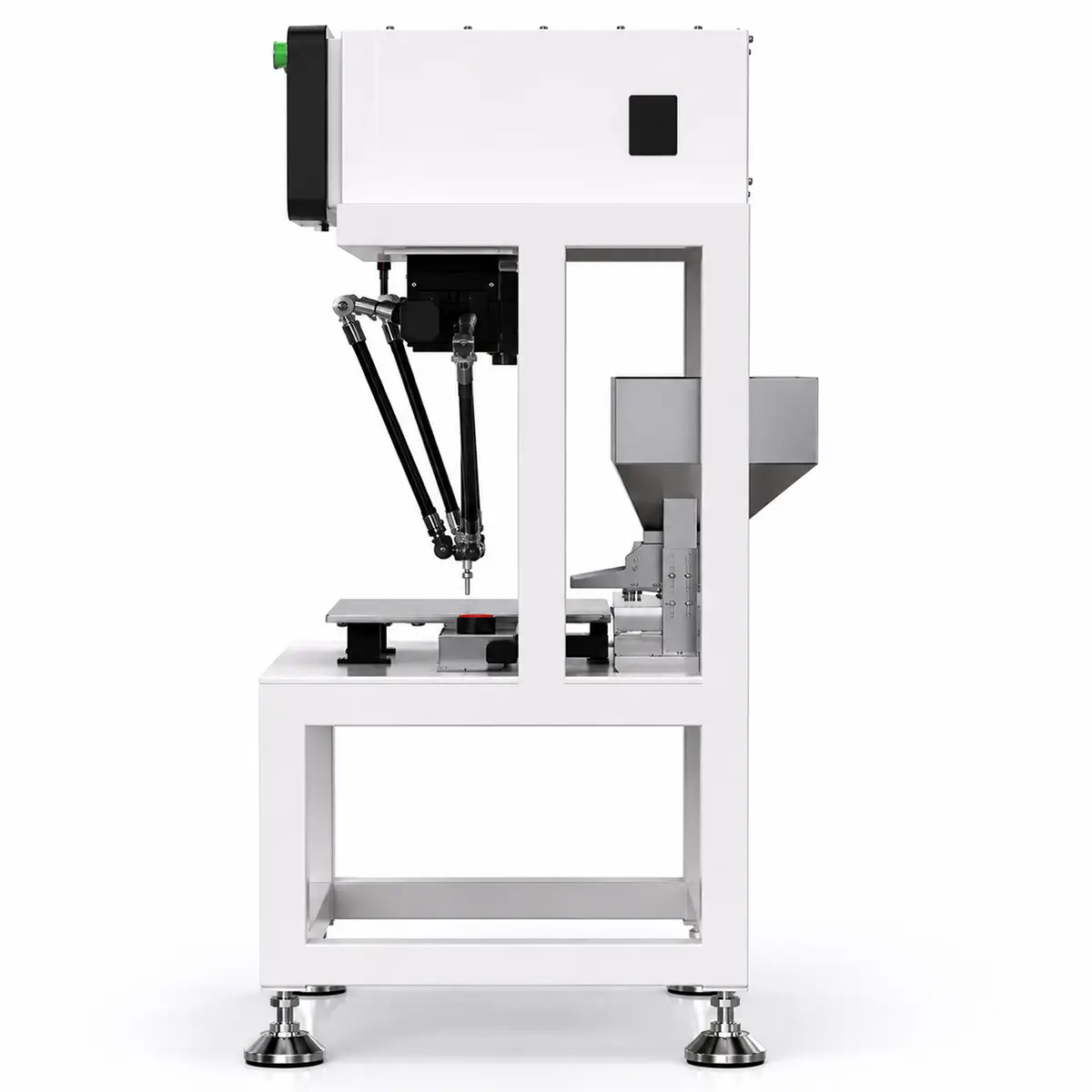

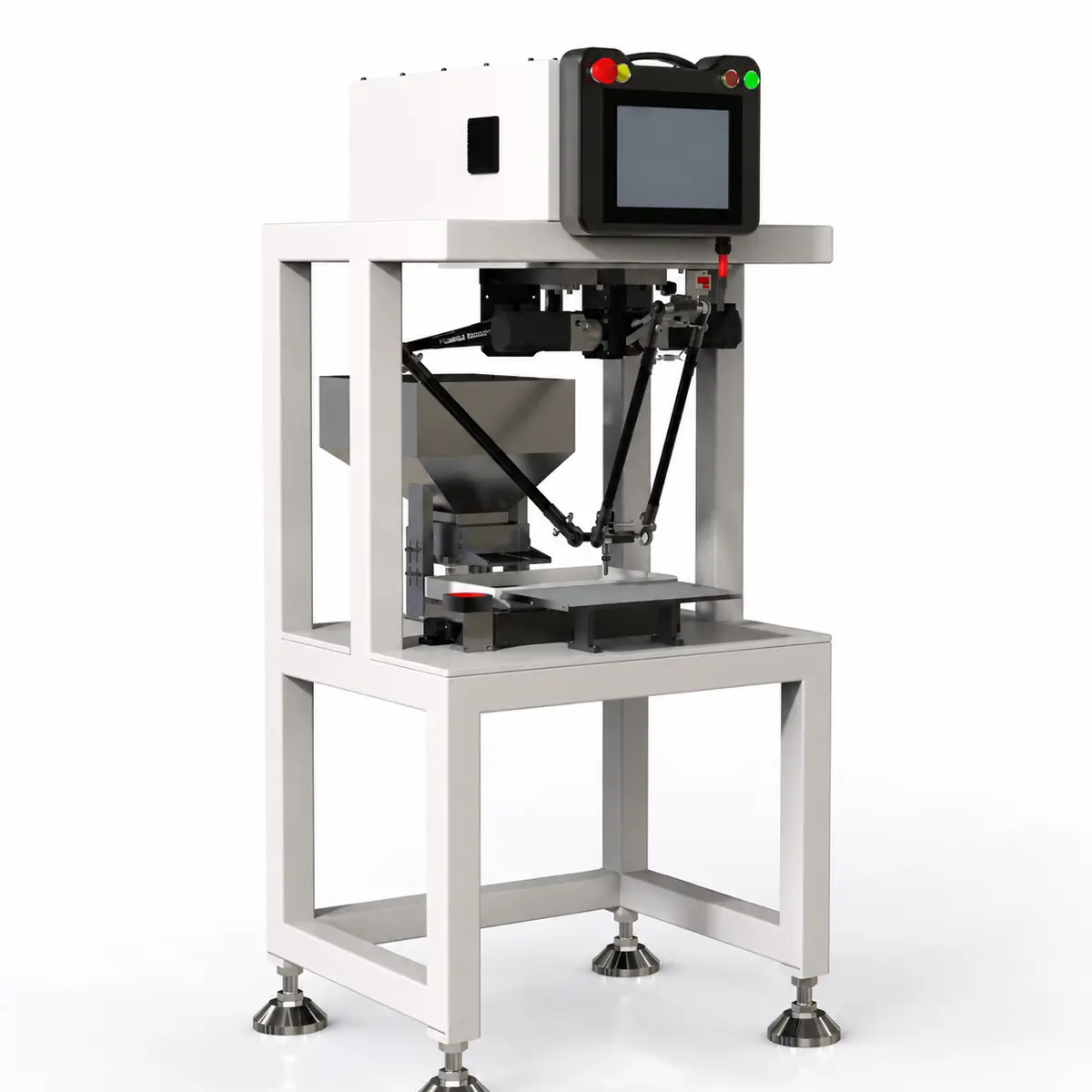

Delta Robot SWMY-HRD5S-SD-M

The SWMY-HRD5S-SD-M Delta Robot is designed for desktop precision plating and high-speed pick-and-place applications. With a working range of 320×250mm, ±0.05mm repeatability, and up to 6000 cycles per hour, it delivers stable and accurate automation performance. Equipped with a Hikvision vision system and SWOER touch teaching control, it supports flexible gripping and efficient product handling for precision manufacturing processes.

Delta Robot SWMY-HRD5S-SD-M Parameter

Model: SWMY-HRD5S-SD-M
NO.	Parameter items	Technical Indicators
1	Effective loading and plating range	320*250mm
2	Adapt to product specifications and sizes	Flat length and width within 2-25mm
3	Repeatability of loading and plating	±0.05mm
4	Peak maximum pick-and-place speed	6000 times/hour
5	Gripping method	The suction clamp brace can be switched freely
6	Number of vibrating plate specifications	300200mm1
7	Control system	SWOER Malaysia touch teaching system
8	Touch teach-in mode	Handheld movement
9	The number of product recipes can be stored	boundless
10	Number of camera brands	Hikvision 1200W1+130W1
11	Rated voltage	AC220V
12	Rated power	1.5KW
13	Positive air pressure rating	0.2-0.5MP
14	Rated negative pressure	Unlimited
15	Net weight of the device	Approximately 200kg
16	Device dimensions	7609001600mm
